Logistics Team Management Vehicles GPS Tracker Engine Cut Off Tracking Device Manufacturer
NR008 is compatible with Original Anti-Theft Alarm of vehicle. When the alarm happends, NR008 will send alarm message to owner and server too. It supports LBS Locating with radio monitor. The owner can track its location by APP on cell phone, therefore it can help the owner to keep the theft away.
| Dimension | 92*65*26mm |
| Weight | 520g |
| Working Voltage | DC:6.3~40V |
| Input Fuse | 2A |
| Power Consumption | 100mA |
| Operating Temperature | -40~85°C |
| Humidity | 10% to 90% |
| CPU | TI:MSP430F149(16MHz) |
| GSM Module | GSM Module: Simcom Band:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) |
| GPS Module | GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Sensitivity: To-159Bm |
| Input I/O | 5 I/O Ports 1 Port for check the engine ( ACC check) 2 Ports for SOS connection 3 Ports for Extend |
| Output I/O | 1 port (Control car engine) |
| Microphone | 3.5mm Single track |
| Earphone | 3.5mm |
| Current | Standby Current:16mA working Current:60~150mA Charging current: Max<500mA |
| Battery | Lithium battery :400mA( working time is about 3.5 hours) |
| Accessories | Device, Connecting cable ,GPS antenna ,GSM antenna, Engine controller, SOS button, Microphone |
Brief Features:
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district

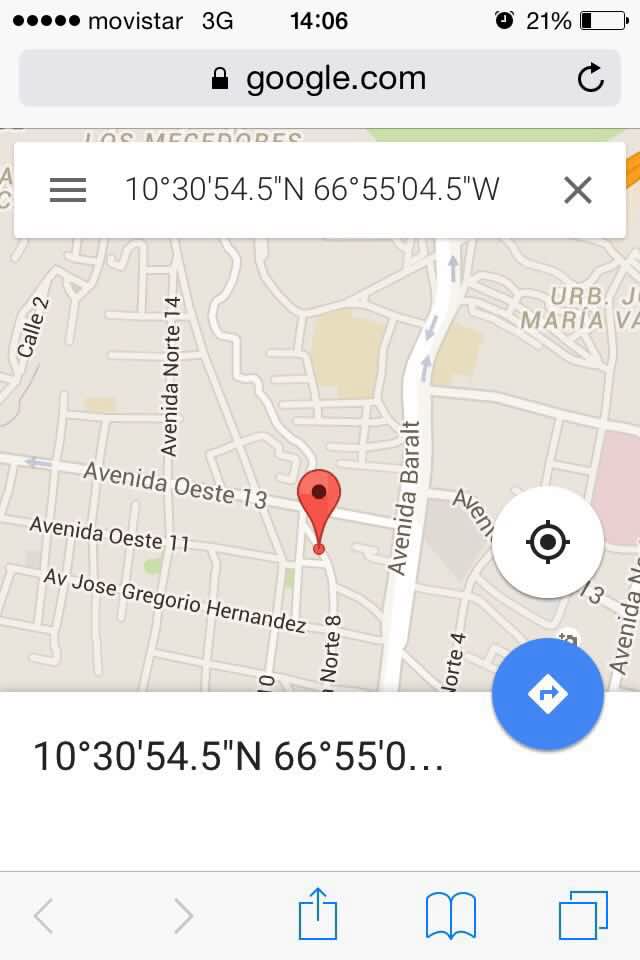

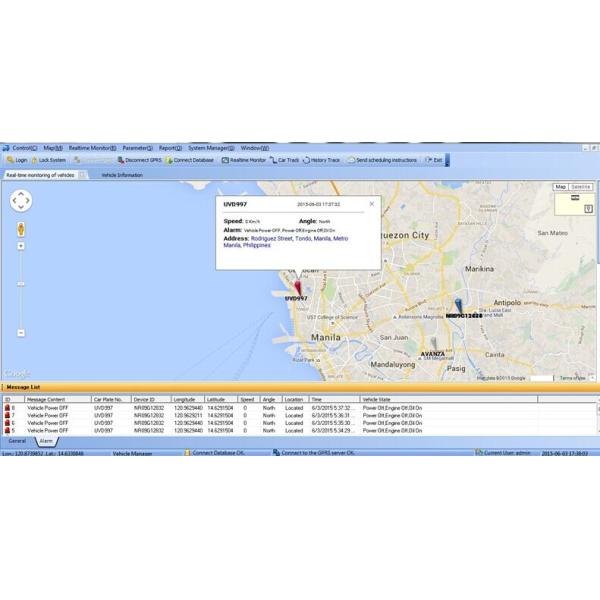

Through the on-line positioning platform or the cell phone to locate at any time, and get the working status. You can choose the positioning Platform by yourself
- Real time Track by Time/Distance Interval
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
When the target moves exceeding a preset speed the unit will send an SMS+Geo-info to the authorized numbers
- Remote controlling oil and circuit

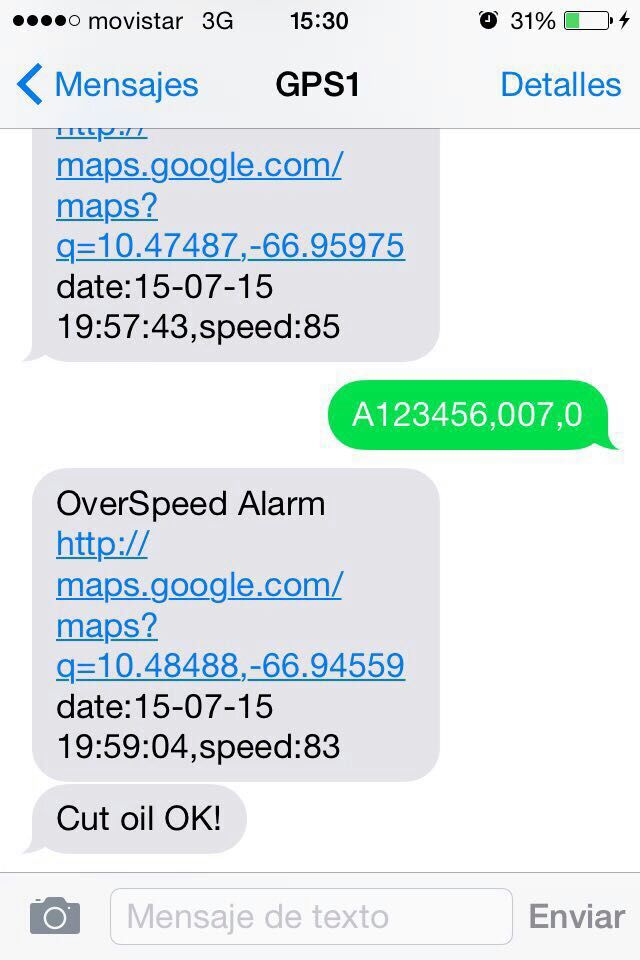

You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
You can press the SOS alarm button to send an alert. This will give the location to the registered phone numbers in case of an emergency.
The SOS function also allows you to talk into the GPS tracker & make yourself heard on the receivers end with the mobile cell phone
When tracker is cut off from the power, the tracker sends alert SMS to user
- Remote Self Failure Analysis
Any error happens on the tracker, it can analysis itself and restart.
- GPS & A-GPS (LBS—location based service)
Using Global Satellite Positioning technology, LBS(Location Based Service) technology(while it’s can’t location via GPS, the devices will get the location information via LBS)
Optional features:
1. Add flash memory
2. Add temperature sensor
3. ACC ON/OFF send SMS message
4. Support TCP/UDP protocol
5. Report position by angle change
6. Support sleep mode
7. Support customized firmware
Many business benefits include:
* Offering fellow employees and clients visibility over service delivery vehicles
* Monitoring driver’s behavior
* Providing detailed usage reports
* All types of static and mobile vehicle GPS tracking and security
